M5 Helicopter
Mace Aviation is pleased to offer the M5 Helicopter. The M5 is an experimental kit helicopter that is based on the venerable MD500 series of helicopters. The core of the M5 helicopter is an all new carbon fiber fuselage that is designed and built by Mace Aviation. The new fuselage is designed to accept the stock MD500D/MD500E/MD530F drivetrain, flight controls, landing gear, tailboom and empennage. These FAA certified components are all commercially available from various companies such as Rolls Royce (engine), Helicopter Technology Company (HTC) (main and tail rotor blades), Aerometals (various parts), Donaldson (inlet barrier filter), and others. The new carbon fiber fuselage coupled with the commercially available FAA STC/PMA parts allows for a new experimental rotorcraft to be assembled that has a long legacy of safety and performance. Contact Mace Aviation for details.
Features
-
All New Carbon Fiber Fuselage with Increased Cabin Volume
-
Increased Cabin Width and Increased Headroom
-
Increased Internal Fuel Capacity (82 gal)
-
Stroking Crew Seats
-
Larger, Flush Cabin Doors with Larger Windows
M5 vs. MD500 Cabin Comparison
- Increased Cabin Volume (113 cu ft)
- Increased Head Room
- Increased Cabin Width (5+ in Wider)
- Flush Quick Release Cabin Doors
- Larger Door Openings with Larger Windows
- Recontoured Boom Fairing
Fuel Capacity
- Increased Fuel Volume (82 Gallons)
- Dual Custom Fuel Bladders
- Large Access Panels in Rear Floor Simplify Installation, Maintenance & Removal
Stroking Crew Seats
- Carbon Fiber Stroking Crew Seats with Integral Lap Belts and Shoulder Harnesses with Inertia Reels
- Removable Seat Cushions
- Superior Comfort

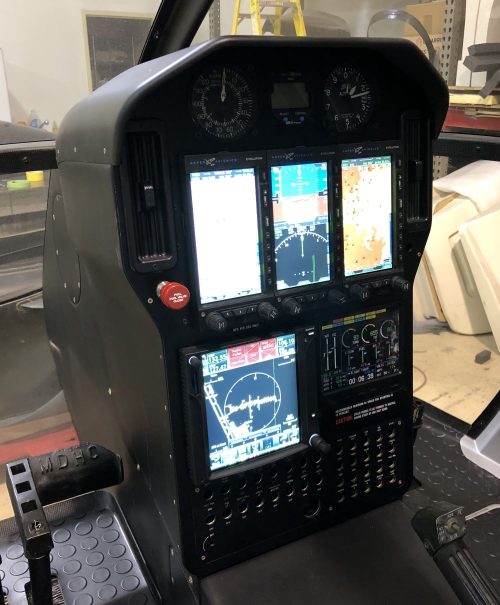

Customizable Instrument Panel
- Customizable Instrument Panel
- Various Glass Panel Options Available
- Optional Digital Engine & Rotor Instruments
M5 Unmanned Aerial Vehicle
- Ideal Platform for ISR, Cargo Resupply (Internal & External), EMS and Precision Strike Missions
- No Runway Required
- Extremely Safe Fully Articulated Rotor Head
- Extremely Smooth & Highly Maneuverable Platform
- 175 mph Vne
- Quick Blade Fold for Truck or Aircraft Deployment
- High Performance Platform with Small Footprint
- Integral EO/IR Sensor Mount
- 12+ Hours Endurance (with Internal Auxiliary Fuel)
- Large Internal Cabin Volume for Cargo
- Large LHS & RHS Clamshell Doors
- Large Flat Floor (No Broom Closet for Flight Controls Routing)
- 5,000 lbs Gross Weight
- Proven Drivetrain with Millions of Flight Hours
- Weapon Mounting Provisions are Available
- Optional 20″ Stretched Fuselage for Increased Internal Volume
